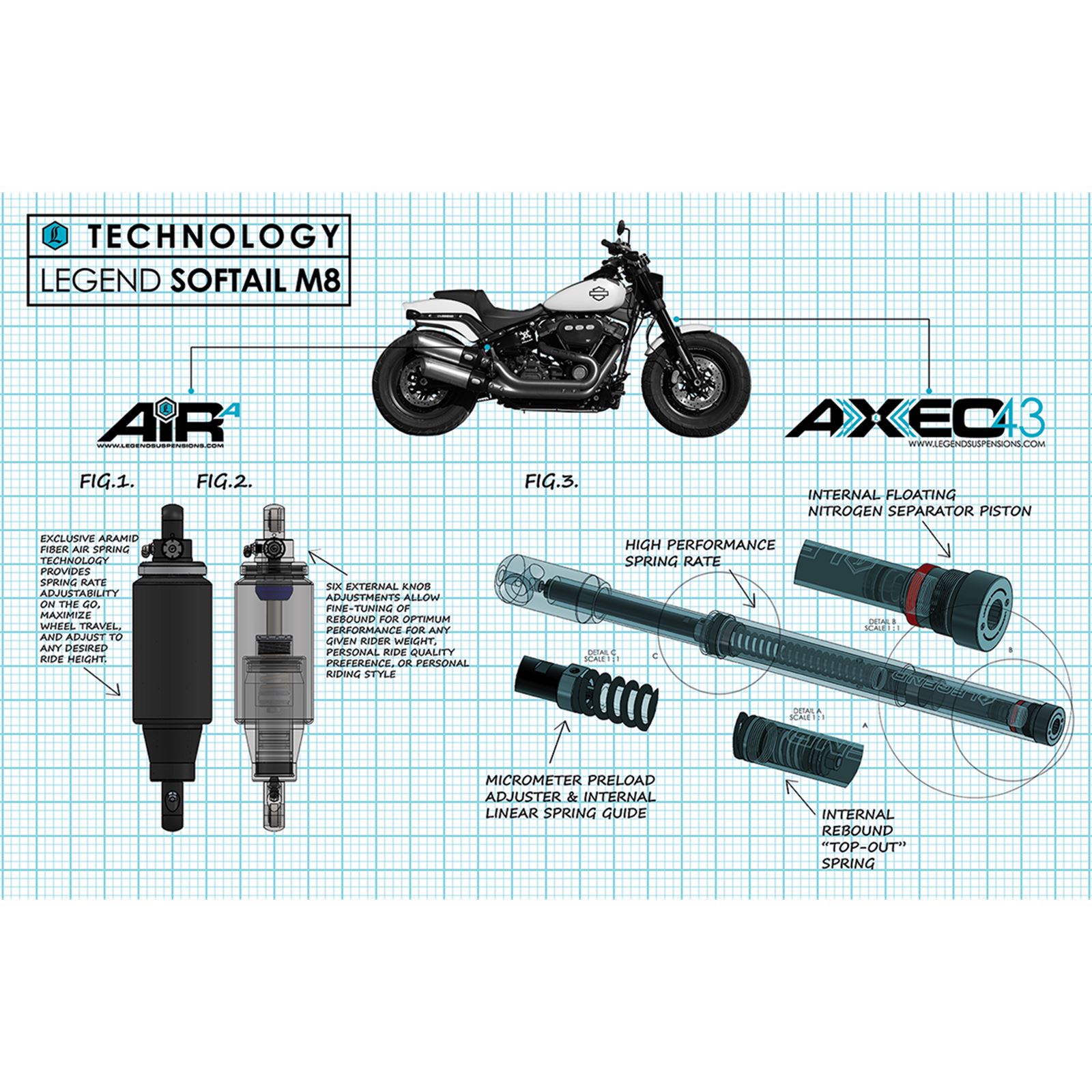

AXEO43 Inverted High-Performance Front Suspension System Replaces the asymmetrical stock internals with a highperformance twin cartridge set (despite different mounting requirements)
Drop-in cartridge that installs easily in a few simple steps

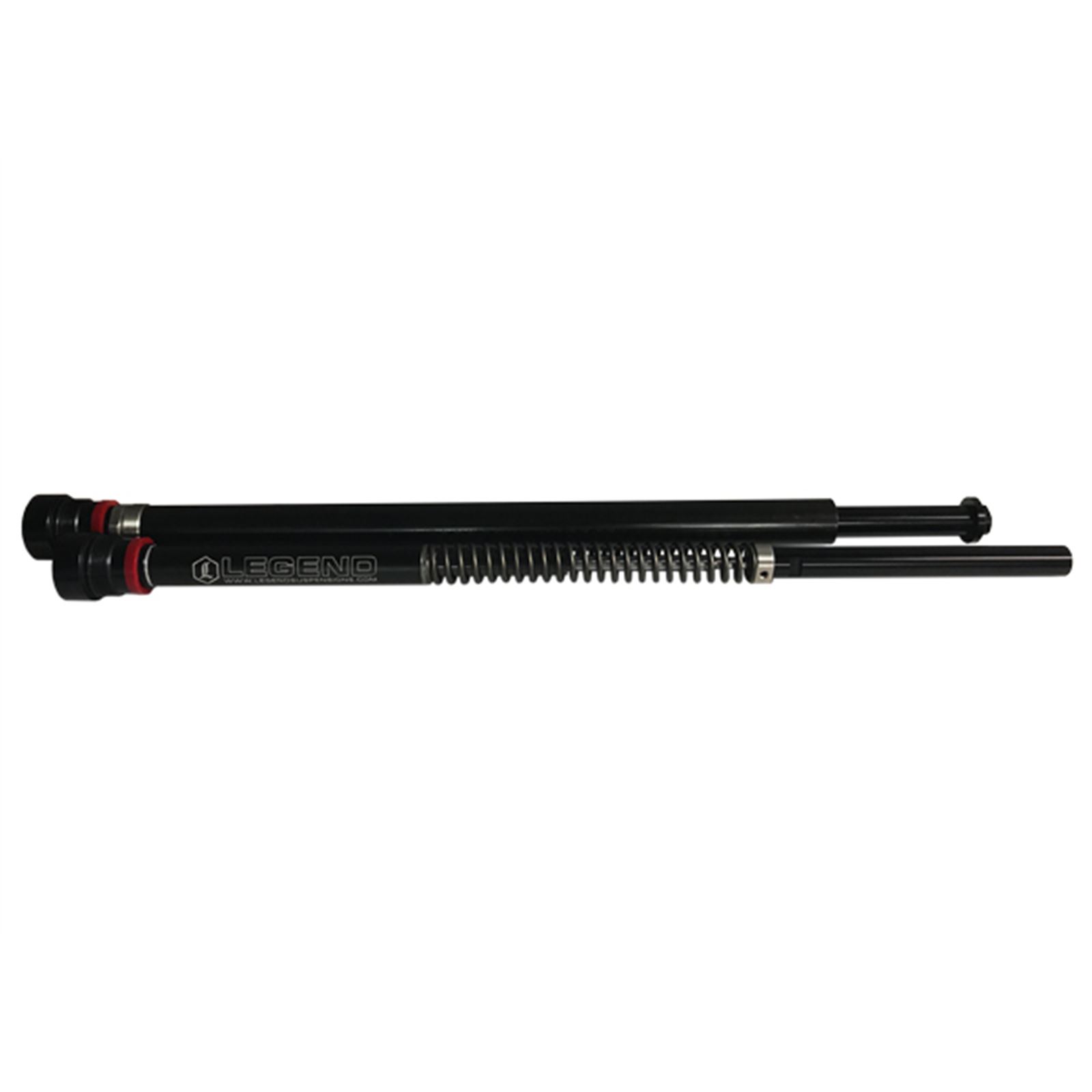

Includes two mono-tube, dual-chambered, suspension fluid-filled damper cartridges
Nitrogen chamber with internal floating piston
Sealed with a high-pressure core Schrader valve specific to nitrogen
Damper piston and deflective disc shim stack
Performance-rated springs with internal linear spring guide and top-out springs
Machined 303 stainless steel threaded pre-load adjuster
Micrometer preload adjuster and internal linear spring guide is designed for and unique to the Legend AXEO43 system
Increased pre-load range allows fine tuning for various riding styles and weights
Internal rebound top-out spring
Hydraulic bumper with polyurethane bump stop
Ride quality is smooth and controlled
Improves stability, cornering and traction
Eliminates front-end dive during aggressive braking and maneuvering
Firm feel for high-speed sweeping turns
Eliminates bottoming out on large bumps or potholes
Reduces dragging floorboards and pegs
Designed for optimum performance with Legend rear suspension system
Lifetime Warranty
Made by hand in Sturgis, SD USA
