SUPER E CARB STD COMPLETE BLK The Super E and G are butterfly type carbs with fully adjustable idle mixture screws and changeable intermediate and main jets
The idle mixture screw is positioned and angled for easy accessibility
Even with five gallon gas tanks, adjustments are not a problem
All Super series carburetors use a special enrichment device instead of a choke for starting
This leaves the bore of the carburetor unobstructed for greater air flow
The enrichment device on the Super E & G carbs is activated by a variable position lever attached to the air cleaner backplate
By simply adjusting the lever, starting and warm-ups are made easy and foolproof

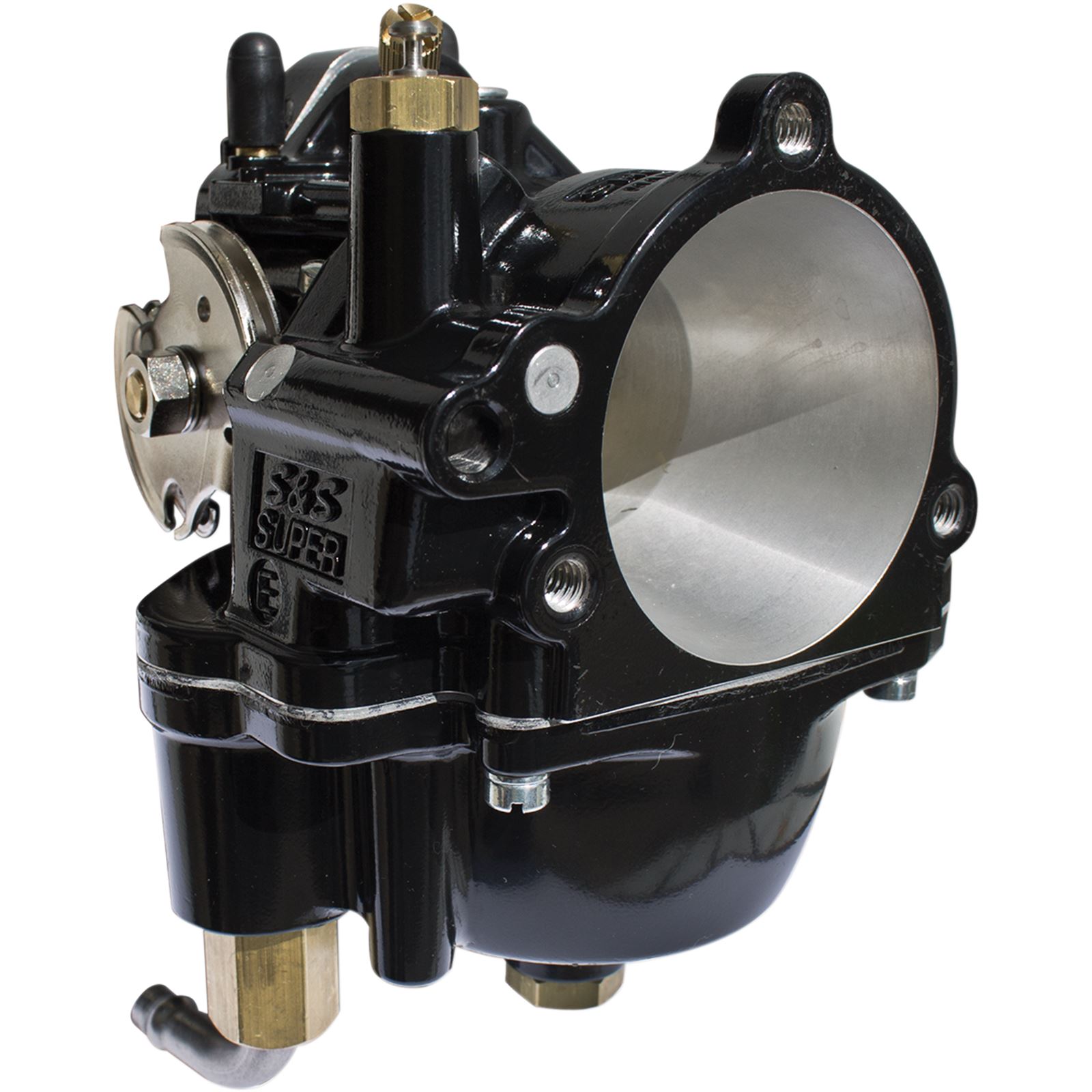

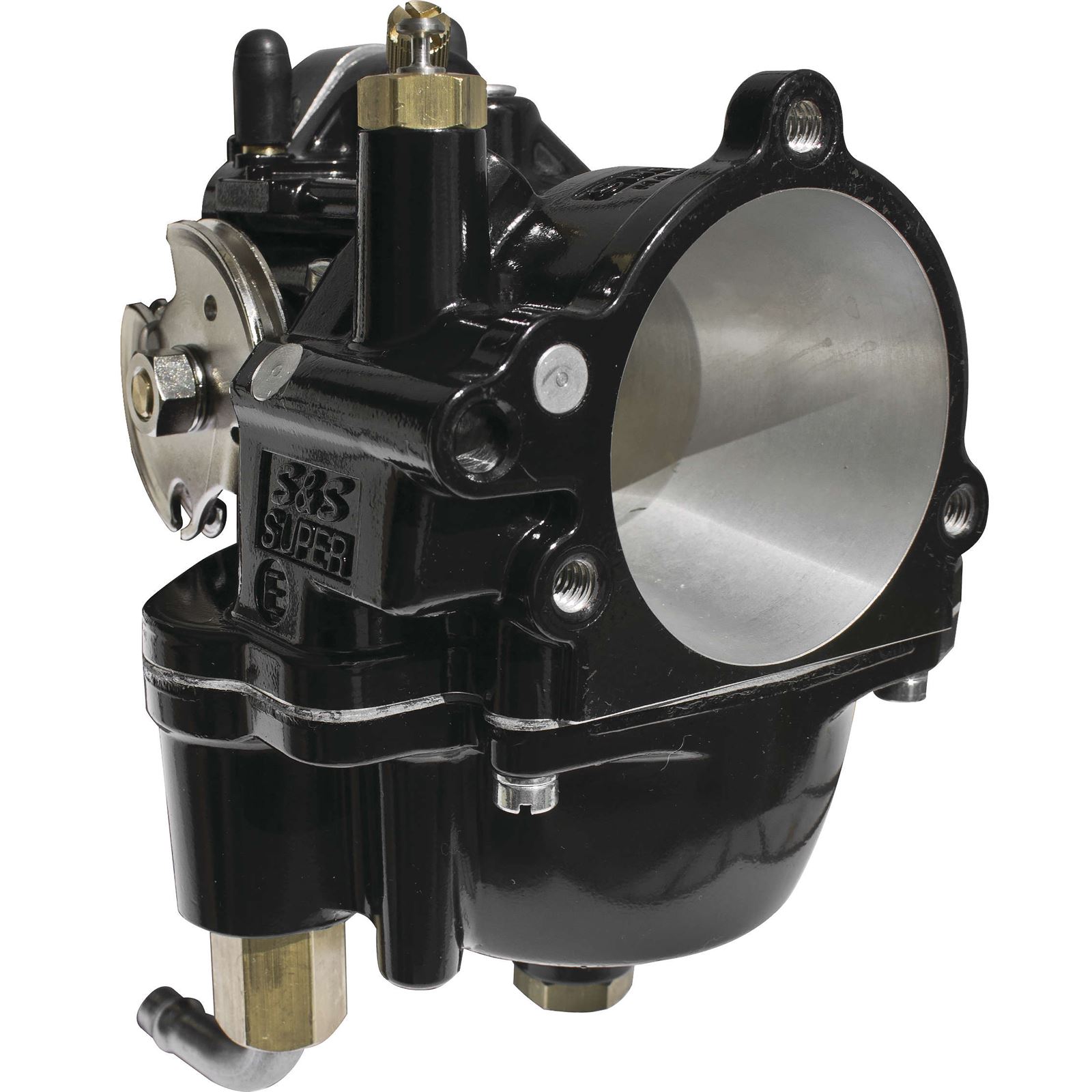

The Super E has a 1-7/8 throat at the butterfly and is identified by an E cast into the throttle linkage side of the carb body below the cast in wording S&S SUPER
The Super G has a 2-1/16 throat at the butterfly and is identified by an G cast into the throttle linkage side of the carb body below the cast in wording S&S SUPER
Throttle spool assembly is designed to accept stock 1981 and later style two-cable pull open-pull closed throttle assemblies so stock throttle cables can be used
Made in USA
